140cc RFN Thunder Dirt Bike - XL Wheel - 19

View more images

Product Description

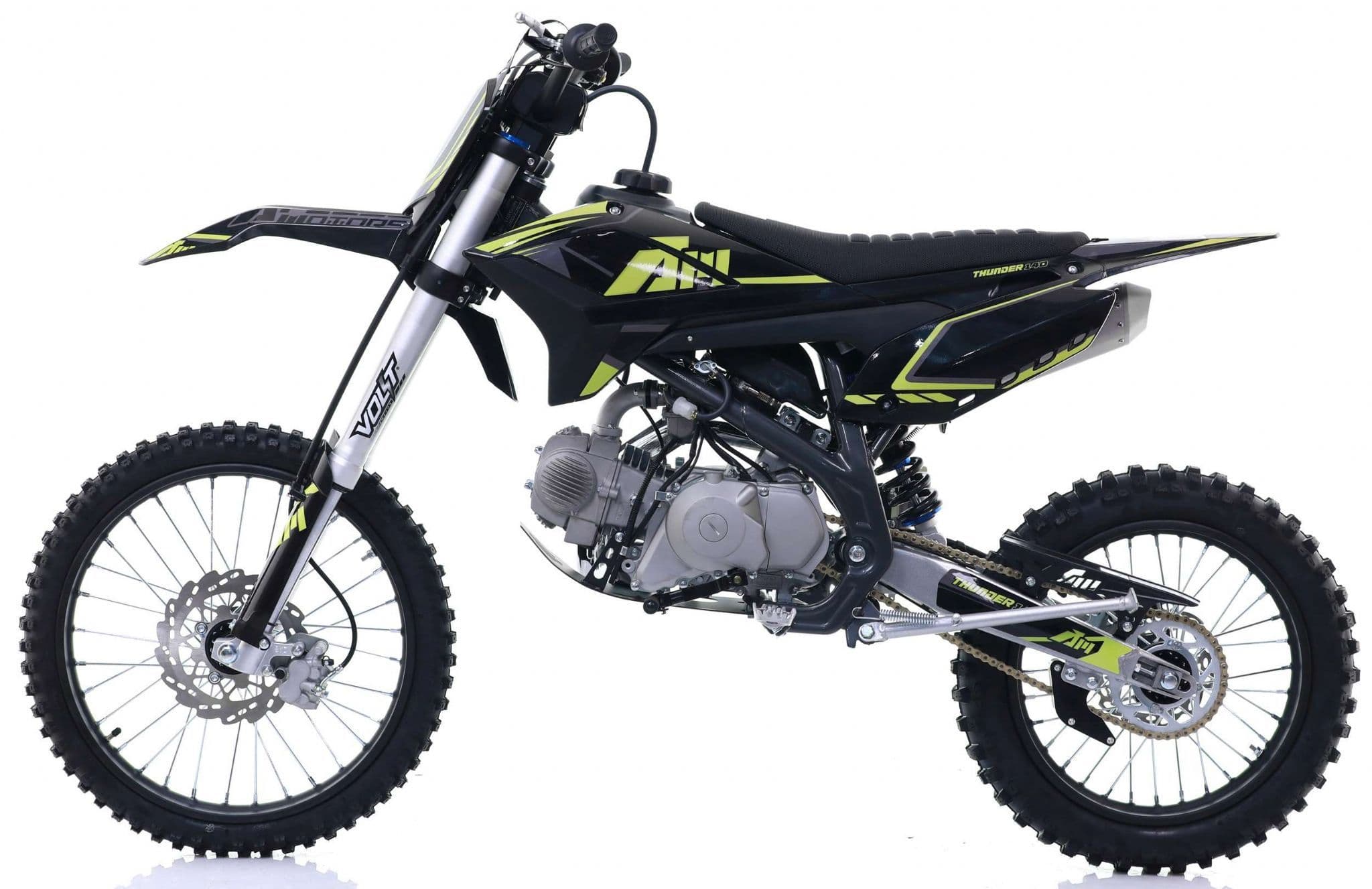

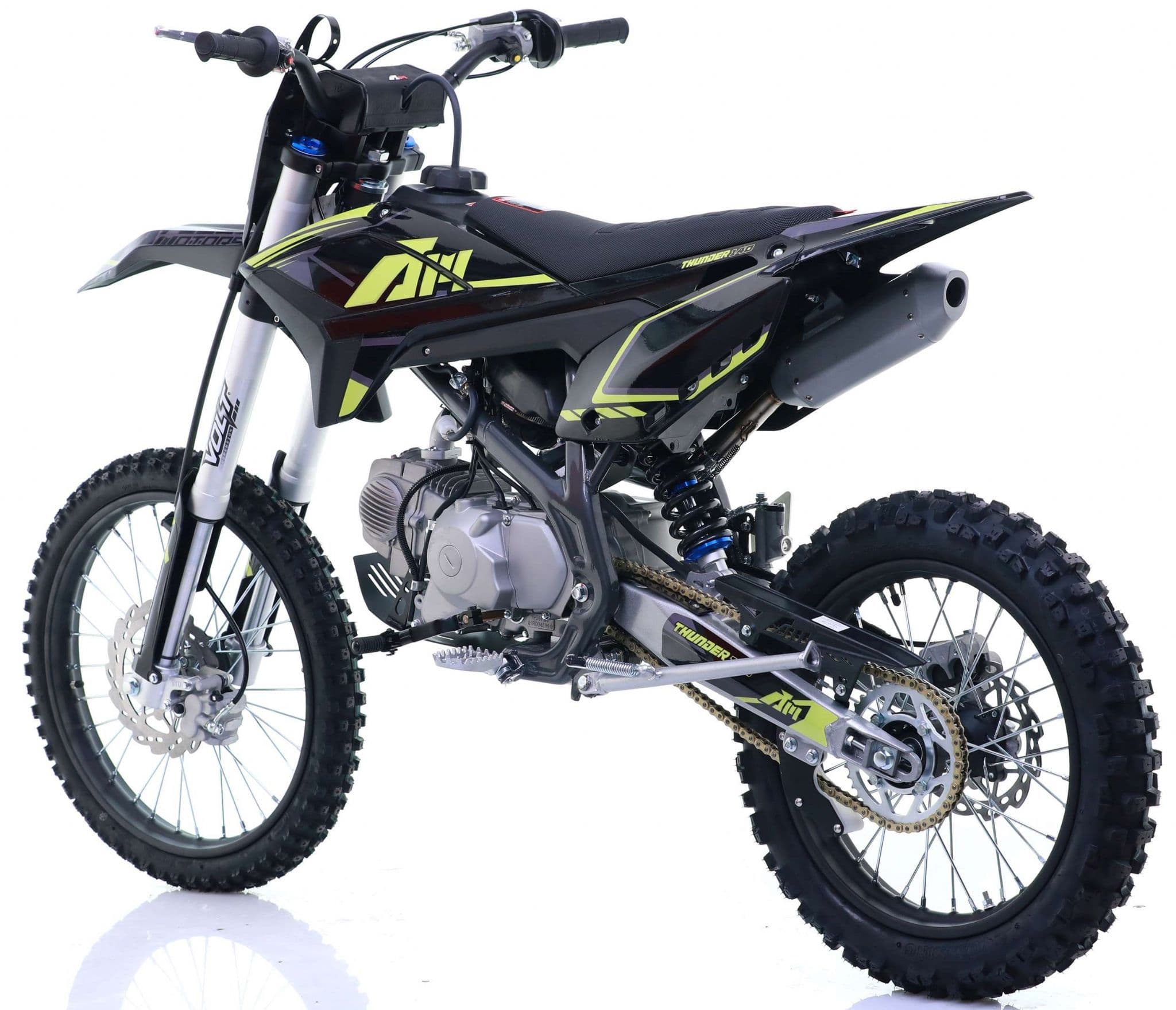

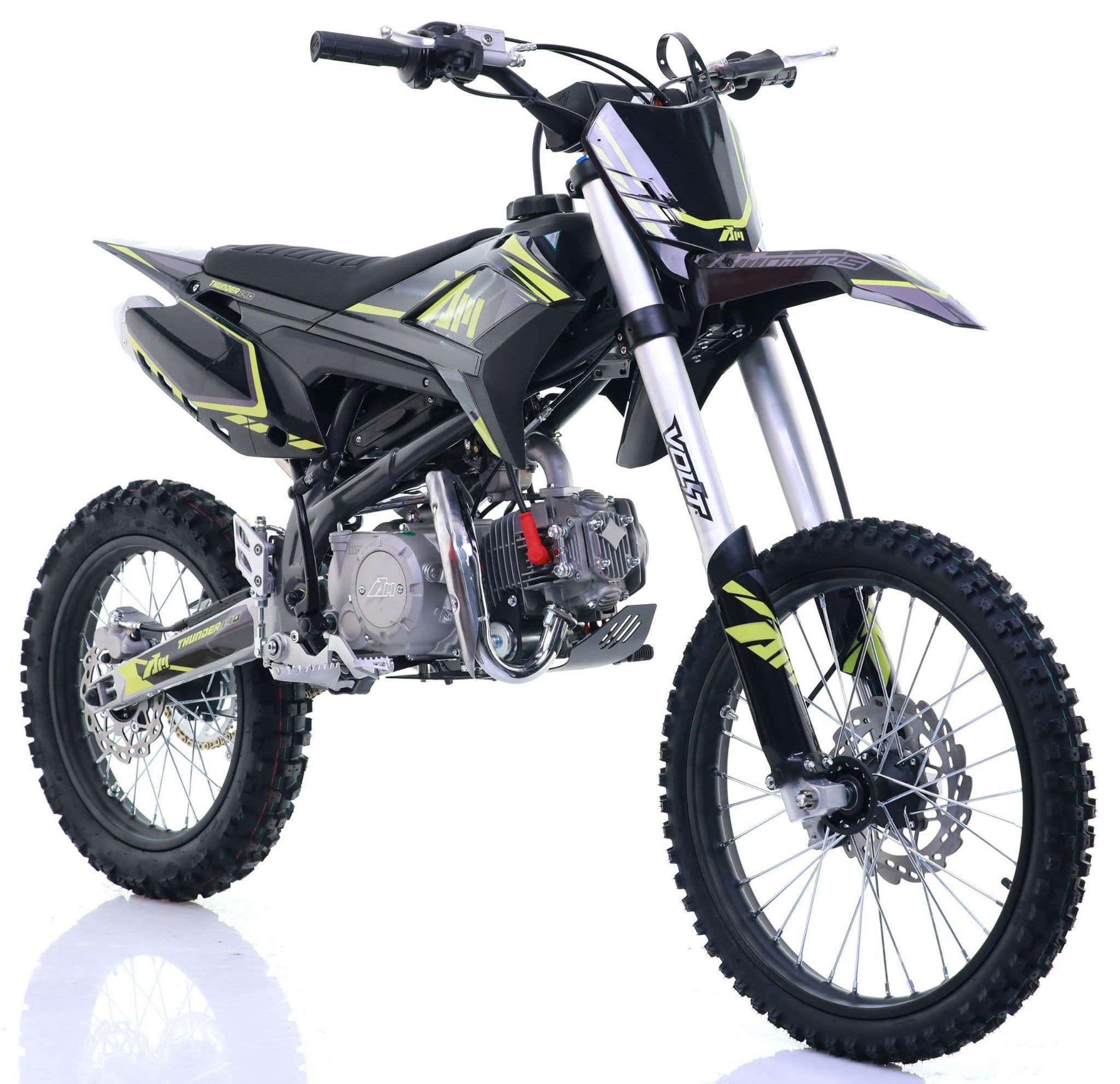

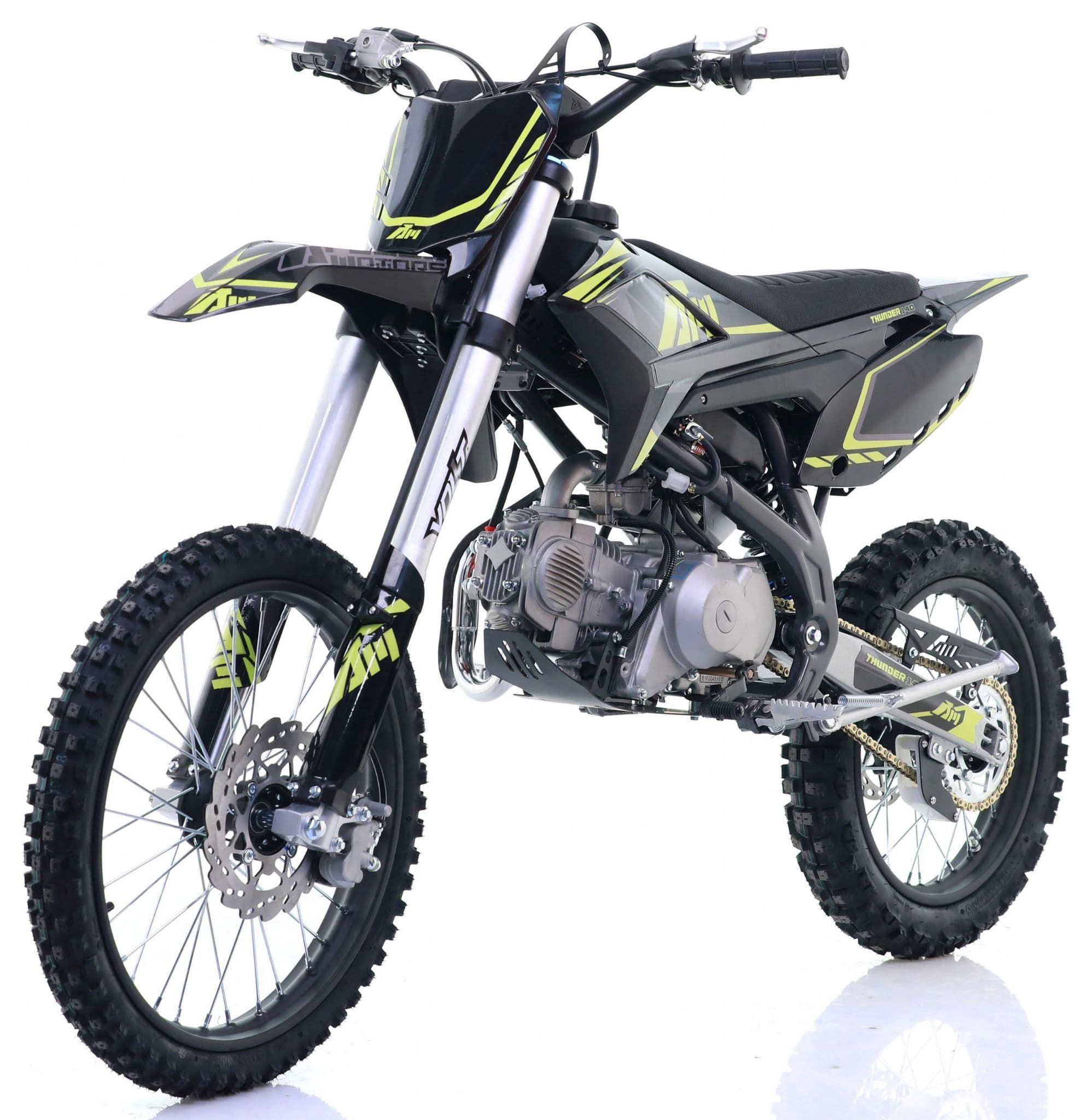

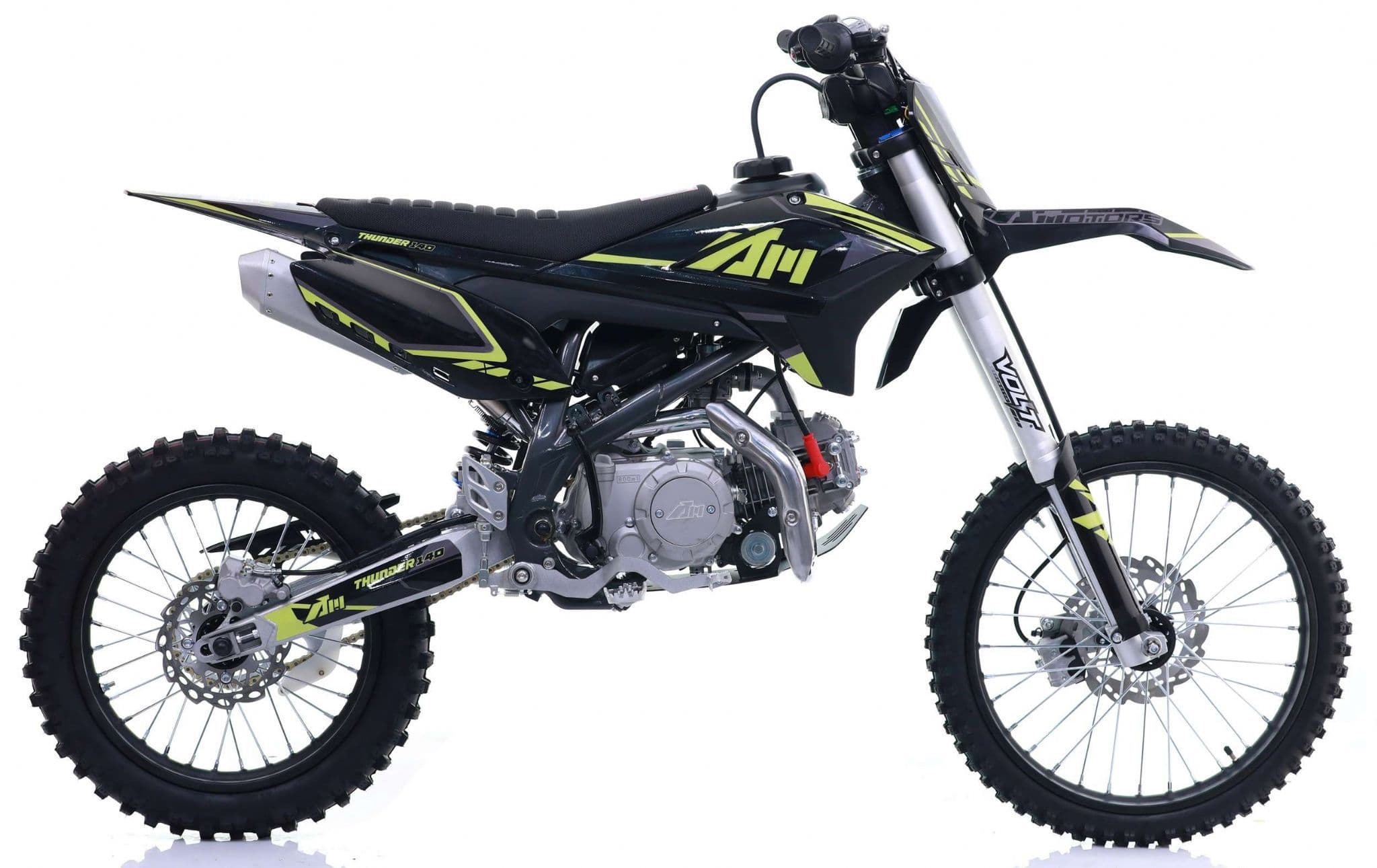

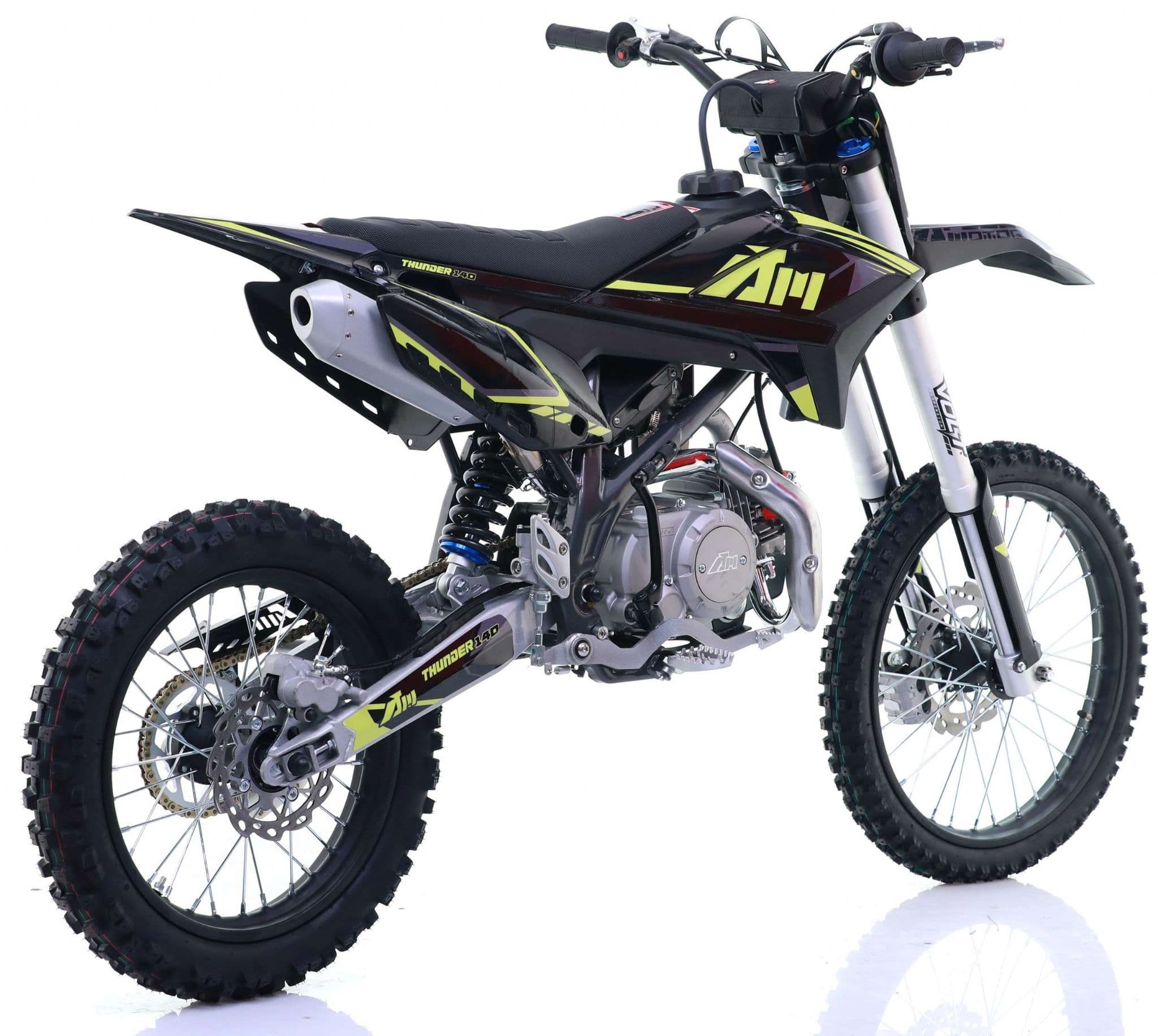

140cc RFN Thunder Dirt Bike - XL Wheel - 19"/16" - BLACK

The RFN 140cc dirt bike replaces it's well established and proven RFZ racing predecessor.

The RFN 140 features a genuine YX 140cc engine with an upgrade to electric start as well as kick start back up. Another unique feature and a first for this category are the XL 19" front and 16" rear wheels, something that proved to be very popular with the RXF brand of bikes.

All in all, we are confident that no other established brand of dirt bike on the market at this price point offers a spec nor finish quality to match this stunning bike.

Key Features -

Genuine YX 140cc engine - Electric start
Manual 4 speed transmission (N-1-2-3-4)
Front & rear hydraulic brakes with wavy discs
Latest technology tubular & profiled frame
19” Front & 16” Rear wheels with rim locks
VOLT™ V-ONE front & rear suspension
Aluminium sports exhaust system
Seat height = 89cm

*This product is supplied in boxed (kit form) for self assembly. Please select the option above for 'build & PDI) if you would like us to fully assemble, test & PDI this product for you.

Specifications

Identifier Exists

FALSE

Brand

RFN

Condition

New

Product Code

140CC - RFN - XLWHEEL - BLACK

Description

140cc RFN Thunder Dirt Bike - XL Wheel - 19"/16" - BLACK

The RFN 140cc dirt bike replaces it's well established and proven RFZ racing predecessor.

The RFN 140 features a genuine YX 140cc engine with an upgrade to electric start as well as kick start back up. Another unique feature and a first for this category are the XL 19" front and 16" rear wheels, something that proved to be very popular with the RXF brand of bikes.

All in all, we are confident that no other established brand of dirt bike on the market at this price point offers a spec nor finish quality to match this stunning bike.

Key Features -

Genuine YX 140cc engine - Electric start
Manual 4 speed transmission (N-1-2-3-4)
Front & rear hydraulic brakes with wavy discs
Latest technology tubular & profiled frame
19” Front & 16” Rear wheels with rim locks
VOLT™ V-ONE front & rear suspension
Aluminium sports exhaust system
Seat height = 89cm

*This product is supplied in boxed (kit form) for self assembly. Please select the option above for 'build & PDI) if you would like us to fully assemble, test & PDI this product for you.

General Spec

General Specifications

WEIGHT	93KG
SEAT HEIGHT	890MM
WHEELBASE	1260MM (+/- 10MM)
GROUND CLEARANCE	360MM
FRONT SUSPENSION	VOLT V-1 810MM
REAR SUSPENSION	VOLT V-1 350MM
SWING ARM	HIGH STRENGTH STEEL WITH NEEDLE CAGE
FRONT BRAKE	HYDRAULIC PISTON - 220MM VENTILATED WAVY DISC
REAR BRAKE	HYDRAULIC PISTON - 190MM VENTILATED WAVY DISC
FRONT / REAR WHEEL	19" / 16" HIGH STRENGTH STEEL (WITH RIMLOCK)
FRONT / REAR TYRE	70/100-19" / 90/100-16" - OFFROAD TYRE
SEAT	GRIPPY - COLOUR CODED
HANDLE BAR / CLAMPS	STEEL - FAT BAR / FORGED ALLOY
GRIPS	APOLLO
FRAME	STEEL PROFILED 35MM OVERSIZE TWIN TUBULAR
MAX RIDER WEIGHT	95KG

Engine Spec

Engine & Transmission Specifications

ENGINE	140CC - LEADING YX BRAND
TRANSMISSION	4 GEARS (N-1-2-3-4)
ENGINE TYPE	4 STROKE - SINGLE CYLINDER - ELECTRIC START
BORE X STROKE	56 X 57MM
OIL CAPACITY	900ML (15W/30)
CARBURETOR	NIBBI PE22 (22MM)
CLUTCH	WET CLUTCH - MULTI PLATE
IGNITION	CDI
CHAIN	428-114
REAR SPROCKET	41 TEETH (428)
FRONT SPROCKET	14 TEETH (428)
EXHAUST	ALLOY - SPORTS STYLE
FUEL TANK	5.3L
BATTERY	12V 6AH GEL BATTERY
TOP SPEED	50+ MPH

Important Product Information

Where to ride: Apollo RFZ RACING bikes & associated products are intended for off road use only & should NEVER under any circumstances be used on the road. Riders should always observe the essential warnings & safety advice for our products & should only operate the machine when wearing full body safety equipment & helmet. If you are in any doubt, please contact us & we will be more than happy to help you.

This product is supplied with a six month manufacturers parts only defect competition warranty.

Assembly: This product is supplied in boxed (kit form) for self assembly. Please select the option above for 'Build & PDI' if you would like us to fully assemble, test & PDI this product for you.

Warranty: This product is supplied with a six month manufacturers parts only defect competition warranty.

Please note that the guarantee / warranty is 'Return to Base' (RTB). The cost to return the goods to us and the delivery back of the goods are the responsibility of the purchaser.

Please also note that the guarantee / warranty will be void if the vehicle is not serviced in line with the servicing policy, or if the vehicle is used outside of its guidelines. For example, electric vehicles are for DRY USE ONLY.

Maintenance: All off-road vehicles such as these require frequent servicing + maintenance and common parts will sometimes require replacement. Please do not purchase this product unless you are willing to maintain the vehicle to a high standard.
